PACSystems™ RX3i Advanced IO-sarja on suunniteltu CPE300 PLC sarjan yhteyteen. RX3i Advanced IO-sarjassa on paras diagostiikan taso. Hot swap tuki mahdollistaa käynninaikaisen korttien vaihdon nopeuttaen vian korjaamista ja vähentäen turhia käyttökatkoja. MRP ja PROFINET System Redundancy puolestaan maksimoivat väylän ja laittein sietokyvyn vikatilanteissa minimoiden näin vikojen ja häiriöiden vaikutuksen tuotantoon.
120/240 Vac Isolated Output, 2 Amp (16 Points). Module requires a terminal block (IC694TBBx32 or IC693TBSx32). Only compatible with RX3i controllers. Compatible high speed serial bus on both Universal Base and Standard. Requires firmware 3.5 and ME 5.
12/24VDC Output (0.75 amps/point)Module 32 point. Requires terminal block IC694TBBx32 box style or IC694TBSx32 spring clamp. Terminal block is sold seperately. Output response Time is 0.5ms.
Smart Digital Output Module 24/125 volt DC, ESCP 1A Positive Logic 16 Points. Module does not ship with terminal block. IC694TBB032 or IC694TBSx032 terminal block is required.
Tuotenumero:
IC695MDL765
Kopioitu!
Output module, Isolated Relay, Normally Open, 4 Amp, 16 point. Requires High Density Terminal Block (IC694TBBx32 or IC694TBSx32). Only compatible with RX3i.Compatible high speed serial bus on both Universal Base and Standard expansion base.
Tuotenumero:
IC694MDL916
Kopioitu!
Output module, relay 4 amp, 8 point isolated per point.
Tuotenumero:
IC694MDL930
Kopioitu!
Output module, relay 3 amp form B and C; 8 point isolated
Tuotenumero:
IC694MDL931
Kopioitu!
Output module, relay 2 amp 16 point, non isolated.
Tuotenumero:
IC694MDL940
Kopioitu!
High speed counter module 200KHZ A B and C type, enhanced mode up to 1MHz with 2MHz internal oscillator
Tuotenumero:
IC694APU300
Kopioitu!
RX3i High Speed Counter, 4 channels. 8 configurable inputs and 7 configurable ESCP outputs. Module supports high speed counting, input interrupts and programmable limit switch.
Tuotenumero:
IC695HSC304
Kopioitu!
RX3i High Speed Counter, 8 channels. 16 configurable inputs and 14 configurable outputs. Supports high speed counting, interrupts and programmable limit switch. Module requires PCI bus with terminal block IC694TBxx32E (E) revision and above.
Isolated Analog module, 6 individual isolated channels are configurable for voltage and current. Requires high capacity terminal block IC694TBB032 or IC694TBS032.
Tuotenumero:
IC695ALG106
Kopioitu!
Isolated Analog module, 12 individual isolated channels are configurable for voltage and current. Requires high capacity terminal block IC694TBB032 or IC694TBS032.
Tuotenumero:
IC695ALG112
Kopioitu!
Input module, analog 4 point voltage.
Tuotenumero:
IC694ALG220
Kopioitu!
Input module, analog 4 point current.
Tuotenumero:
IC694ALG221
Kopioitu!
Input module, analog 16 point single ended/8 channel differential, voltage.
Tuotenumero:
IC694ALG222
Kopioitu!
Input module, analog 16 point single ended, current.
Tuotenumero:
IC694ALG223
Kopioitu!
RX3i Efficiency 16-Channel Advanced Analog Voltage Input module provides 16 single-ended or 8 differential input channels. 0 to 10 V, -10 to + 10V, 16 bits. Advanced diagnostics. Requires PME 6.5 SIM 5 and above CPU firmware 6.5 and above.
Tuotenumero:
IC694ALG232
Kopioitu!
RX3i Efficiency 16Ch Advanced Analog Current Input module provides 16 single-ended or 8 differential input channels. 0 - 20mA and 4 - 20mA with 16 bit resolution. Advanced diagnostics. Requires PME Logic developer 6.5 SIM or later
Tuotenumero:
IC694ALG233
Kopioitu!
Isolated Thermocouple Input module provides twelve isolated differential thermocouple input channels. Each channel can be individually configured for inputs from: Thermocouple types: J, K, T, E, R, S, B, N, or C and Voltage: +/-150mV or +/-50mV. Module
Tuotenumero:
IC695ALG312
Kopioitu!
High Speed 12 channel isolated thermocouple module with increased noise rejection. Requires firmware and software 6.5 and higher.
Tuotenumero:
IC695ALG412
Kopioitu!
RX3i Isolated RTD Input module provides eight isolated differential RTD input channels. Each channel can be individually configured for 2, 3, 4 wire RTD or Resistance. Requires high capacity terminal block IC694TBB032 or IC694TBS032
Tuotenumero:
IC695ALG508
Kopioitu!
UNIVERSAL ANALOG MODULE. 8 CHANNELS OF ANALOG CONFIGURABLE FOR THERMOCOUPLE,RTD, RESISTIVE, CURRENT, OR VOLTAGE. 2 ISOLATED GROUPS, 4 CHANNELS PER GROUP. Terminal block ordered separately.
Tuotenumero:
IC695ALG600
Kopioitu!
Analog Input module, 8 channels single ended, 4 channels differential, channels are configurable for voltage and current. Can be configured for Current: 0 to 20mA, 4 to 20mA, +/- 20mA; Voltage: +/- 10V, 0 to 10V, +/- 5V, 0 to 5V, 1 to 5V. The analog
Tuotenumero:
IC695ALG608
Kopioitu!
Analog Input module, 16 channels single ended, 8 channels differential, channels are configurable for voltage and current. Can be configured for Current: 0 to 20mA, 4 to 20mA, +/- 20mA; Voltage: +/- 10V, 0 to 10V, +/- 5V, 0 to 5V, 1 to 5V. The analog
Tuotenumero:
IC695ALG616
Kopioitu!
Analog Input HART module, 16 channels single ended, 8 channels differential,channels are configurable for voltage,current and current/ HART. Supports Current: 0 to 20mA, 4 to 20mA, +/- 20mA; Voltage: +/- 10V, 0 to 10V, +/- 5V, 0 to 5V, 1 to 5V. The an
Tuotenumero:
IC695ALG626
Kopioitu!
Analog Input HART module, 8 channels single ended, 4 channels differential,channels are configurable for voltage,current and current/ HART. Supports Current: 0 to 20mA, 4 to 20mA, +/- 20mA; Voltage: +/- 10V, 0 to 10V, +/- 5V, 0 to 5V, 1 to 5V. The ana
Tuotenumero:
IC695ALG628
Kopioitu!
OUTPUT MODULE ANALOG 2 POINT VOLTAGE
Tuotenumero:
IC694ALG390
Kopioitu!
Output module analog 2 points, current.
Tuotenumero:
IC694ALG391
Kopioitu!
Output module analog 8 points, voltage/current.
Tuotenumero:
IC694ALG392
Kopioitu!
Analog Output Module, 4 channels,that is configurable for voltage and current, configured for Current: 0 to 20mA, 4 to 20mA; Voltage: +/- 10 VDC, 0 to 10VDC per channel non isolated. Up to 16 bit resolution. Requires high capacity terminal block IC694
Tuotenumero:
IC695ALG704
Kopioitu!
Analog Output Module, 8 channels,that is configurable for voltage and current, configured for Current: 0 to 20mA, 4 to 20mA; Voltage: +/- 10 VDC, 0 to 10VDC per channel non isolated. Up to 16 bit resolution. Requires high capacity terminal block IC694
Tuotenumero:
IC695ALG708
Kopioitu!
Analog Output HART Module, 8 channels,that is configurable for voltage, current, current/HART configured for Current: 0 to 20mA, 4 to 20mA; Voltage: +/- 10VDC, 0 to 10VDC per channel non isolated. Up to 16 bit resolution. Requires high capacity termin
Tuotenumero:
IC695ALG728
Kopioitu!
Isolated Analog Output module, 8 channels, that is configurable for voltage and current. Requires high capacity terminal block IC694TBB032 or IC694TBS032.
Tuotenumero:
IC695ALG808
Kopioitu!
Analog combination module current/voltage 4 inputs 2 outputs.
Tuotenumero:
IC694ALG442
Kopioitu!
RX3i Efficiency combination analog module, 4 in voltage/current and 2 out voltage/current with 16 bit resolution and advanced diagnostics. Requires Proficy® Machine Edition Logic Developer 6.5 SIM 5 and above CPU firmware 6.5 and above.
Tuotenumero:
IC694ALG542
Kopioitu!
RX3i Communication Module, I/O Link Interface Module (Slave). Module uses RX3i high speed serial bus.
Tuotenumero:
IC694BEM320
Kopioitu!
RX3i serial communications module. Two isolated RS-232/485 port. Supports Serial Read/Write and Modbus Master/Slave. Requires Unversal Backplane.
Tuotenumero:
IC695CMM002
Kopioitu!

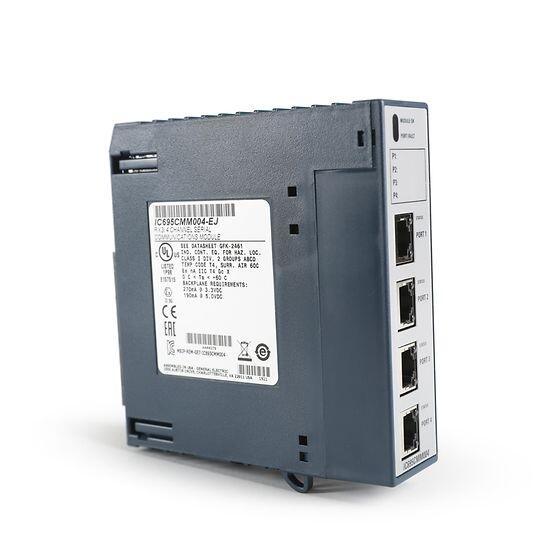

RX3i serial communications module. Four isolated RS-232/485 port. Supports Serial Read/Write and Modbus Master/Slave. Requires Unversal Backplane.
Tuotenumero:
IC695CMM004
Kopioitu!
Control Memory Xchange Module 128Megbytes of user shared memory.
Tuotenumero:
IC695CMX128
Kopioitu!
RX3I IEC 61850 COMMUNCIATION MODULE
Tuotenumero:
IC695ECM850
Kopioitu!
RX3I ETHERNET DNP3 OUTSTATION MDL,10/100
Tuotenumero:
IC695EDS001
Kopioitu!
PACSYSTEMS RX3I IEC-60870-5-104 SERVER
Tuotenumero:
IC695EIS001
Kopioitu!

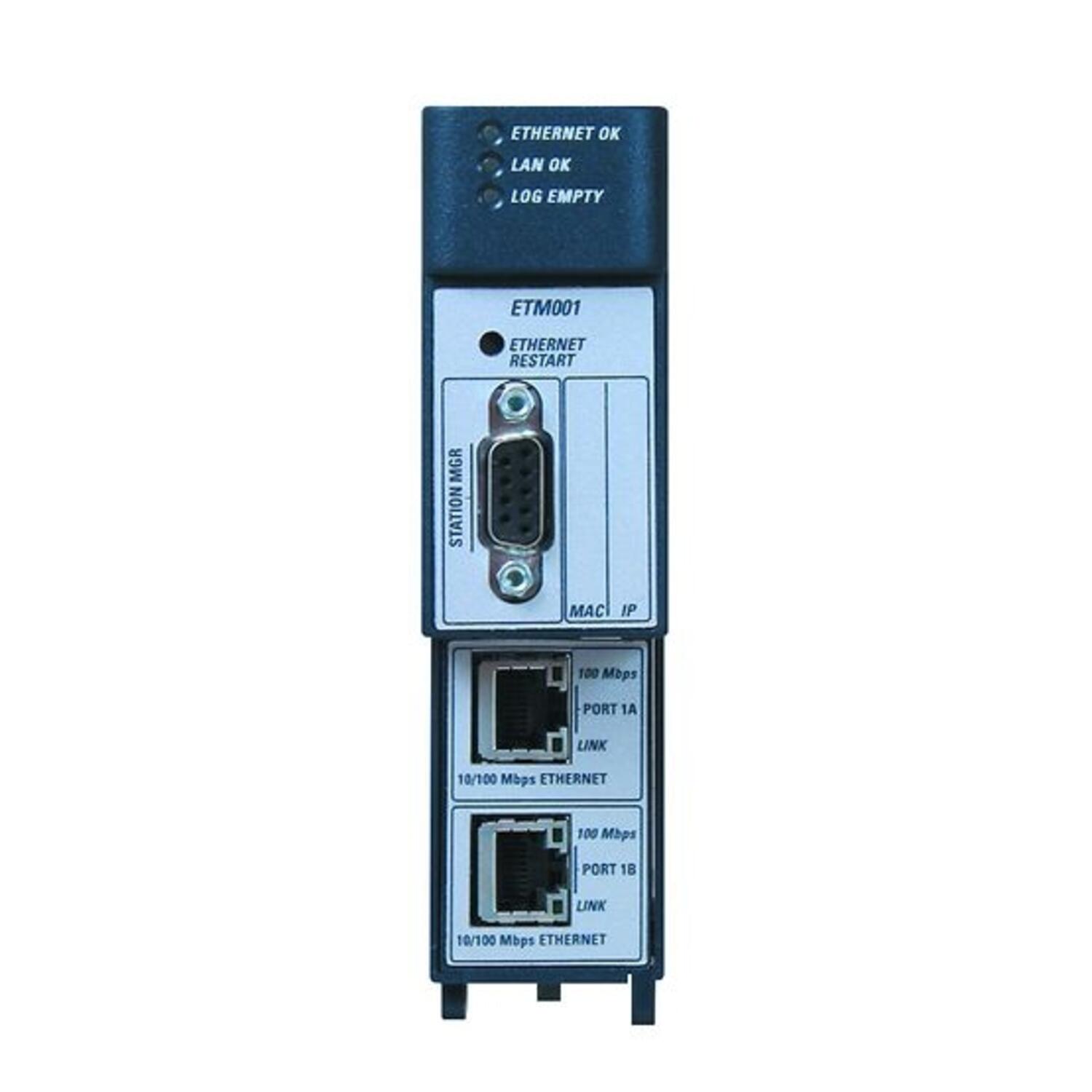

Ethernet module 10/100 Mbits 2 RJ45 connections one IP address occupies one slot on system base
Tuotenumero:
IC695ETM001
Kopioitu!

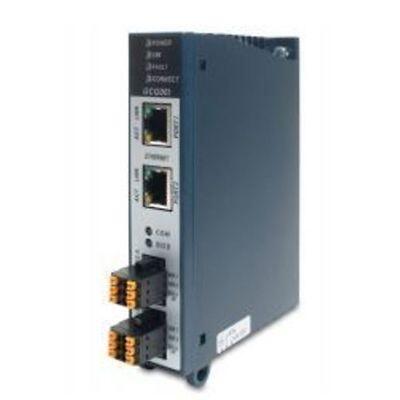

RX3I GENIUS COMMUNICATIONS GATEWAY
Tuotenumero:
IC695GCG001
Kopioitu!
RX3i Local Expansion Module Occupies no system slots on base
Tuotenumero:
IC695LRE001
Kopioitu!
RX3i NIU with two serial ports and 20K of local logic. Module requires Universal base (IC695CHSxxx) and requires Ethernet module (IC695ETM001).NIU supports all RX3i I/O modules.
Tuotenumero:
IC695NIU001
Kopioitu!
RX3i PROFIBUS Master Module (must be installed on RX3i PCI bus). The mo dule supports PROFIBUS V1 Master functionality.

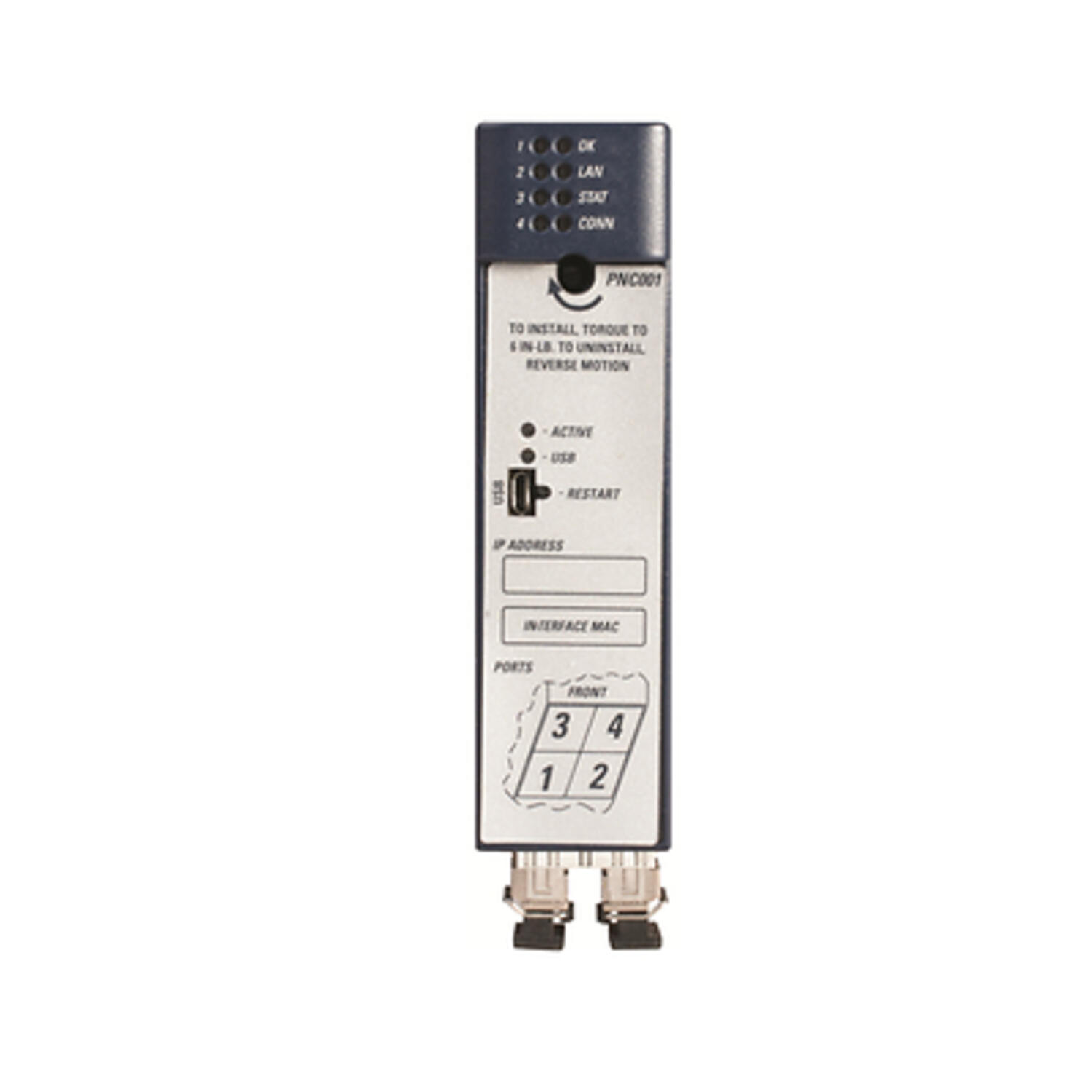

Profinet Controller. The PNC module provides all the functions, services, and protocols required for certification as a PROFINET IO Version 2.2 device, running at both 100Mbps and 1Gbps. Compatible with IC695CPU315, CPU320, CPE310 and CPE305 only and
Tuotenumero:
IC695PNC001
Kopioitu!

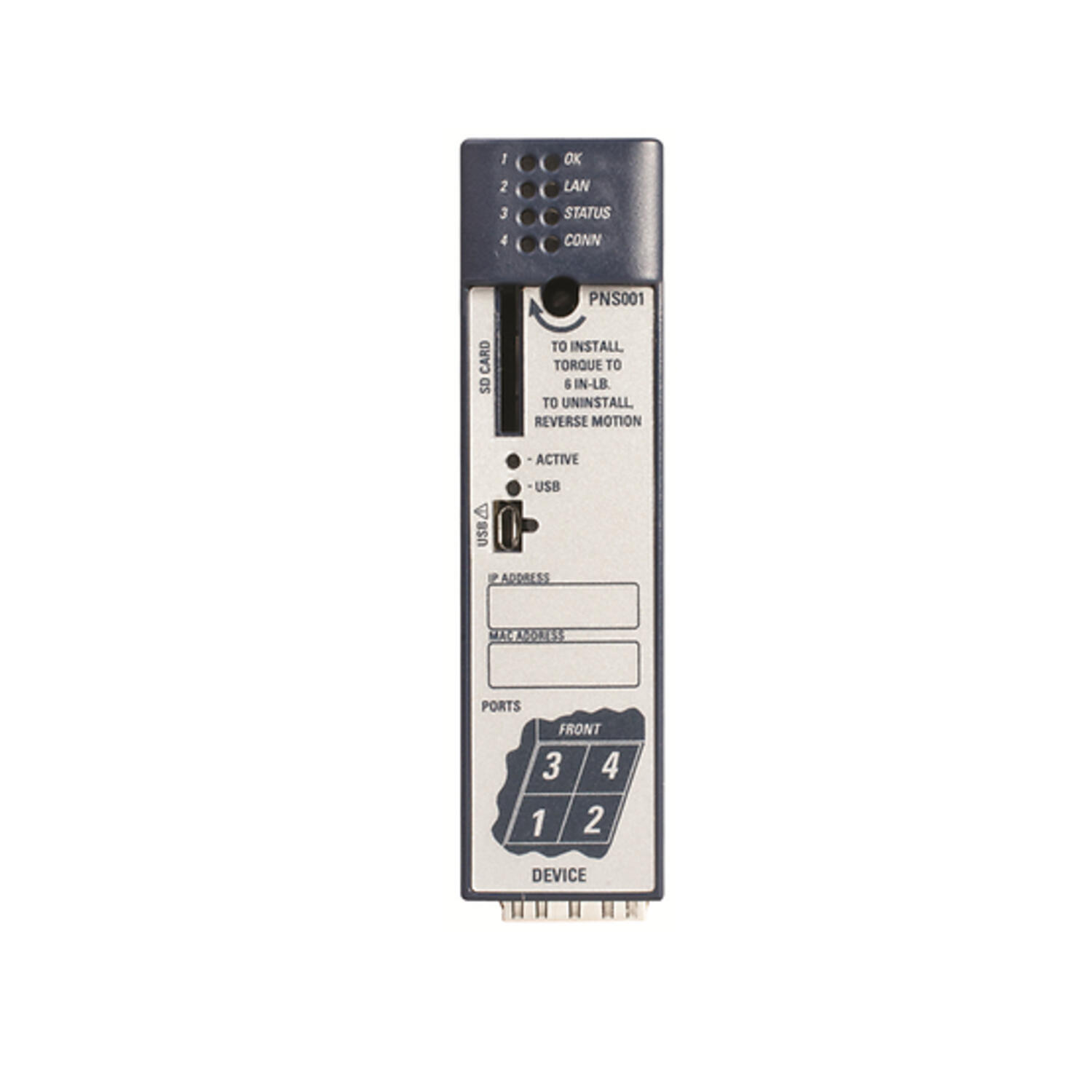

RX3I PROFINET SCANNER MODULE (WEB UPGR
Tuotenumero:
IC695PNS001
Kopioitu!
RX3I ADVANCED PROFINET SCANNER MODULE
Tuotenumero:
IC695PNS101
Kopioitu!
Pressure Transducer module. The serial port communicates with up to 15 Honeywell LG1237 Smart Pressure Transducer sensors. Requires firmware/software 6.5 or higher.
Tuotenumero:
IC695PRS015
Kopioitu!

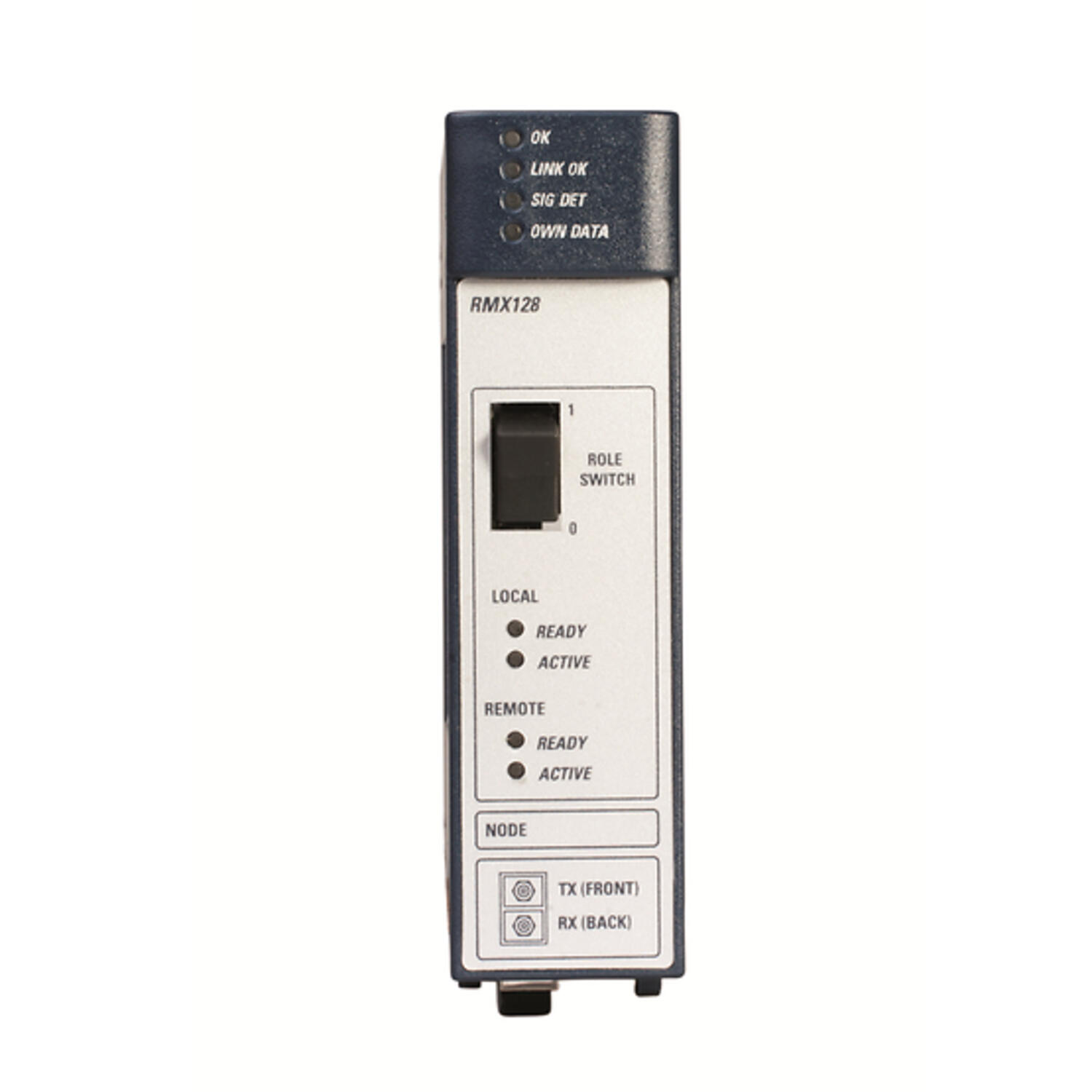

RX3i Redundant Memory Xchange Module for High Availability. 2Megbytes of user shared memory. Dual Genius LAN is supported using application code that is located on the ge-ip.com/support website.
Tuotenumero:
IC695RMX128
Kopioitu!
RX3I CONTROL MEMORY XCHANGE MODULE, SIN
Tuotenumero:
IC695RMX228
Kopioitu!
RX3i 16 universal modules slots base
Tuotenumero:
IC695CHS016
Kopioitu!
RX3i 12 slot universal base
Tuotenumero:
IC695CHS012
Kopioitu!
7 Slot Universal Base. Slot 0 limited to power supply (IC695PSxxx) only and slot 6 is a PCI slot only (IC695xxx). Slots 1 through 5 support both PCI and high speed serial connection (IC695xxx and IC694xxx)
Replacement plastic cases for RX3i CPU and AC PS, quantity 4. Does not include front cover.
Tuotenumero:
IC695ACC002
Kopioitu!
Door labels for RX3i IC695xxx I/O modules. Kit includes 2 each of IC695ALG600, IC695ALG608, IC695ALG616, IC695ALG626, IC695ALG628, IC695ALG704, IC695ALG708, IC695ALG728, IC695HSC304, IC695HSC308
Tuotenumero:
IC695ACC003
Kopioitu!
Auxiliary Smart Battery Module for PACSystems. Provides low battery signal to the CPU. Module mounts external to the controller.
Tuotenumero:
IC695ACC302
Kopioitu!
RX3i Cold Junction Compensation Kit \ for Universal Analog Input IC695ALG600
Tuotenumero:
IC695ACC600
Kopioitu!
Series 90-70 to RX3i Mechanical Frame
Tuotenumero:
IC695ACC650
Kopioitu!
SERIES 90-70 TO RX3I I/O ADAPTER CARD
Tuotenumero:
IC695ACC651
Kopioitu!
SERIES 90-70 TO RX3I 5-SLOT CONV RACK
Tuotenumero:
IC695ACC652
Kopioitu!
RX3I Power supply 120/240VAC and 125VDC 40 watts occupies two slots on s ystem base.
Tuotenumero:
IC695PSA040
Kopioitu!
RX3i 24VDC power supply, 40 watts.
Tuotenumero:
IC695PSD040
Kopioitu!
Multipurpose Power Supply is suitable for use in load-sharing and redund ancy application. It must be installed in a PACsystems RX3i (IC695catalog number) Universal Backplane.
Tuotenumero:
IC695PSD140
Kopioitu!
120/240VAC, 125VDC Multipurpose Power Supply is suitable for use in load -sharing and redundancy application. It must be installed in a PACsystems RX3i (IC695catalog number) Universal Backplane. It can be used as the only power supply in the backplane,
Tuotenumero:
IC695PSA140
Kopioitu!

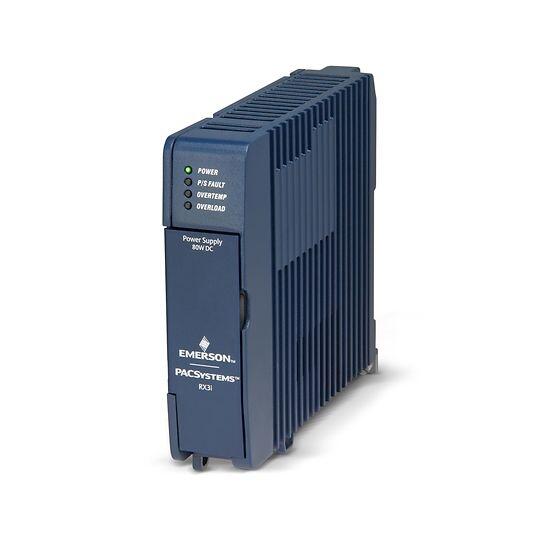

RX3I 24VDC ISOLATED POWER SUPPLY, 80W
Tuotenumero:
IC695PSD180
Kopioitu!

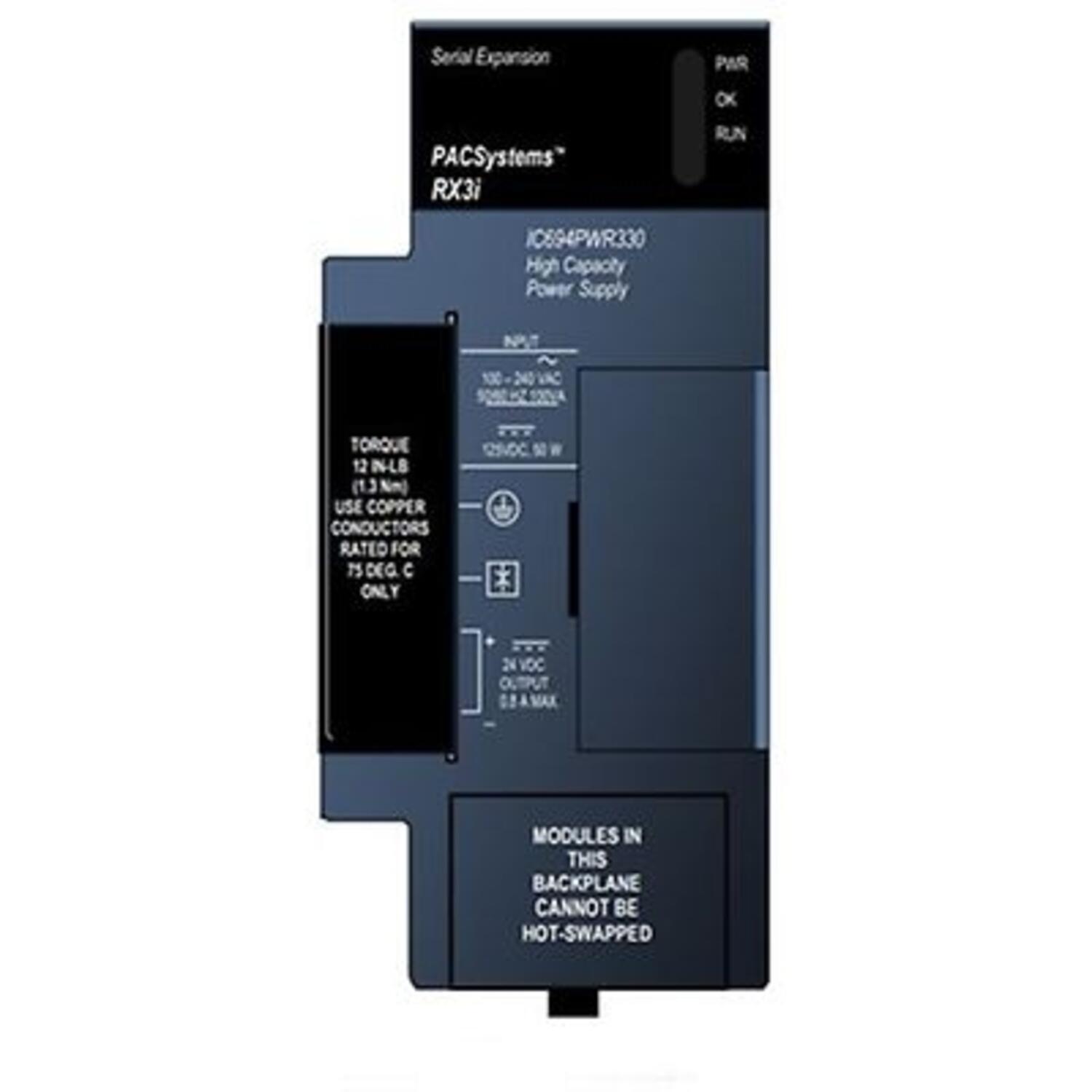

Power Supply 120/240 Vac 125 Vdc High Capacity
Tuotenumero:
IC694PWR330
Kopioitu!
Power Supply 24 Vdc High Capacity.
Tuotenumero:
IC694PWR331
Kopioitu!
Input simulator module, 16 points.
Tuotenumero:
IC694ACC300
Kopioitu!
Input module, 120 VAC 8 point, isolated per point.
Tuotenumero:
IC694MDL230
Kopioitu!
Input module, 240 VAC 8 point, isolated per point.
Tuotenumero:
IC694MDL231
Kopioitu!
Input module 120 VAC, 16 points.
Tuotenumero:
IC694MDL240
Kopioitu!
Input module 24 VAC, 16 points.
Tuotenumero:
IC694MDL241
Kopioitu!
120 Vac Isolated Input (16 points). Module requires a terminal block IC694TBBx32 or IC693TBSx32). Only compatible with RX3i controllers. Compatible high speed serial bus on both Universal Base and Standard expansion base. Requires firmware 3.5 and ME
Tuotenumero:
IC694MDL250
Kopioitu!
Input module 120 VAC, 32 points. Module requires a terminal block IC694TBBx32 or IC693TBSx32). Only compatible with RX3i controllers. Compatible high speed serial bus on both Universal Base and Standard expansion base. Requires firmware 3.5 and above
Tuotenumero:
IC694MDL260
Kopioitu!
Input module 125 VDC 8 point POS/NEG logic.
Tuotenumero:
IC694MDL632
Kopioitu!
Input module 24 VDC 8 point POS/NEG logic.
Tuotenumero:
IC694MDL634
Kopioitu!
Input module 125 VDC 16 point POS/NEG logic. Module does not have UL certification on revision A.
Input module 5/12 VDC (TTL) 32 point POS/NEG logic.
Tuotenumero:
IC694MDL654
Kopioitu!
Input module 24 VDC 32 point POS/NEG logic.
Tuotenumero:
IC694MDL655
Kopioitu!
INPUT 48 VDC POS/NEG 32PT FAST. Wiring termination is two Fujitsu connectors.
Tuotenumero:
IC694MDL658
Kopioitu!
RX3i 24VDC Input Module 32 point. Module is supported by serial bus andis not limited to the universal base or expansion base. The module requires a terminal block (IC694TBB032 box style or IC694TBS032 spring clamp style terminal block). Terminal blo
Tuotenumero:
IC694MDL660
Kopioitu!
Smart Digital 24VDC Input module, 16 input channels in two groups of eight. Module does not ship with terminal block. IC694TBB032 or IC694TBSx032 terminal block is required.
